| TB000565 |
Essential tools for timing the BMW diesel chain drive engines with engine codes N47, N47S, N57 and N57S.
Models:
Series 1: 116d 118d 120d 123d (E81 E82 E87 E88 F20)
Series 3: 316d 318d 320d 325d 330d (E90 E91 E92 E93 F30)
Series 5: 520d 525d 530d 530d 535d 535d GT GT M550d (E60 E61 F07 F10 F11)
Series 7: 730d 740d 750D (F01)
X1: 1.8d; 2.0d; 2.3d, (E84)
X3: 1.8d; 2.0d; 3.0d, 3.5D (E83 F25)
X5: 3.0d; 4.0d; M5.0d, (E70)
X6: 3.0d; 4.0d; M5.0d, (E71)
16d 118d 120d 123d (E81 E82 E87 E88 F20)
All models with N47 2.0/3.0 N57 (Mini N47C16K/N47C16/N47C20K/N47C20U) diesel engines

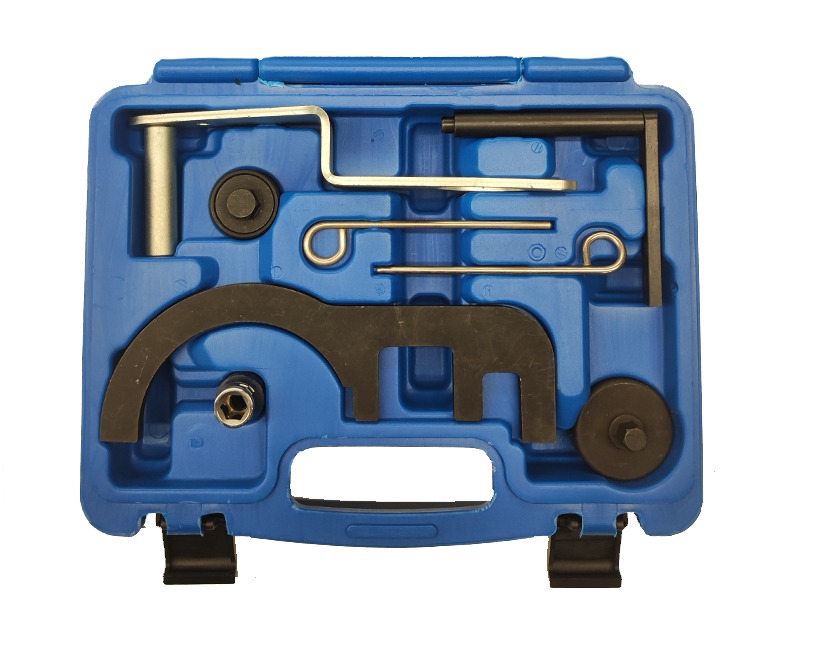

Includes camshaft setting plate, flywheel locking pin and crankshaft turning tool.
Also includes HP pump sprocket retaining tool required during pump removal and replacement applications.
Crankshaft locking tool (11 4 320)
Without it, it’s impossible to replace the oil pump chain, both timing chains, the gear of the high pressure pump and of the balancer shaft.
This kit is necessary when the timing chain creaks (links damaged). The N47 engine family is prone to excessive timing chain wear and premature failure. Rattling noise from rear of the engine is indicative of the condition. Timing chain failure may call for engine replacement or a costly repair.
